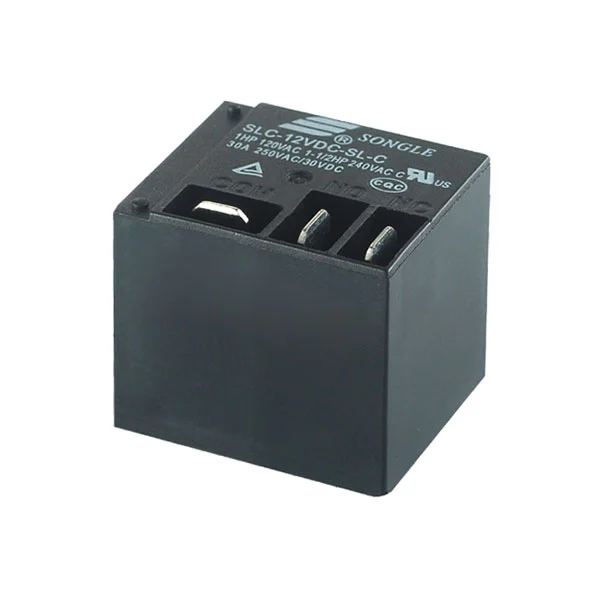

The SLC (T91) Relay supports A/B/C contact configurations for on-demand selection, matching different circuit control logics. It offers both sealed and flux-resistant options, directly adapting to both standard operating conditions and special environments without the need for additional protective components. During installation, its standardized PCB terminal design allows direct integration into the device's motherboard. Its 30g weight ensures installation stability and compatibility, eliminating the need for custom mounting brackets and significantly shortening the assembly cycle. During adaptation, its 5-48VDC wide nominal voltage range is compatible with most industrial and household power supply systems. The design ensures precise circuit control response with a pull-in voltage ≤ 75% of the nominal voltage and a release voltage ≥ 10% of the nominal voltage, allowing for normal operation without complex debugging. In terms of maintenance, the product boasts 10⁵ electrical cycles and 10⁷ mechanical cycles, eliminating the need for frequent replacements over long-term use. It features a 1000MΩ high insulation resistance and 1500VAC... The open-circuit contact withstand voltage reduces the risk of leakage and failure. Only routine cleaning is required to ensure stable operation, greatly reducing maintenance costs and downtime losses.
30A 스위칭 성능
2kV dielectric strength(between coil and contacts)
1개의 Form A, 1개의 Form B 및 1개의 Form C 구성
밀봉형과 방폭형이 있습니다.
| 접촉 매개변수 | 값 |
| 접촉 배열 | 알파벳 |
| 접점등급 | 20A/30A 250VAC, 1~1/2HP 240VAC, 1HP 120VAC |
| 접촉 저항 | 100mΩ 이하 |
| 전기적 내구성 | 10⁵ / 10⁴ |
| 기계적 내구성 | 107 |
| 코일 매개변수 | 값 |
| 공칭 전압 | 5~48VDC |
| 전력 손실 | 0.9W |
| 픽업 전압(최대) | 공칭 전압의 75% |
| 드롭아웃 전압(최소) | 공칭 전압의 10% |
| 기타 매개변수 | 값 |
| 주변 온도(°C) | -40°C~+85°C/+105°C |
| Dielectric strength (Coil & contacts, 1min) | 2000VAC |
| 절연 내력(개방 접점, 1분) | 1500VAC |
| 절연저항(500VDC) | 1000MΩ |

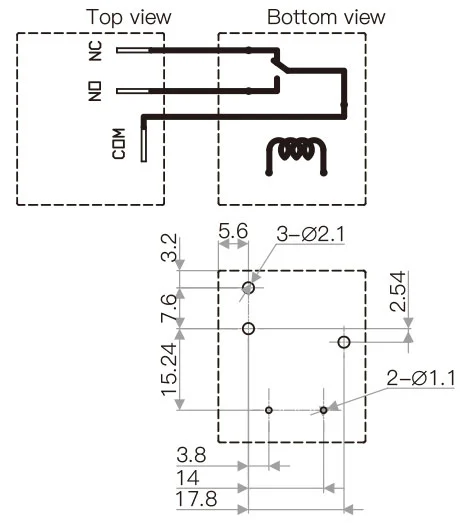

| 배선도(저면도) |
|
| 설치 구멍 도면(저면도) | |
| 종료 | P.C.B (PCB 단자) |
| 무게 | 30g |
| 안전 승인 |
|
